DART for Test Points

DART for Test Points Remote Monitoring Unit (GSM & Satellite)

Do you think remote monitoring has to be complicated? Not anymore.

Our DART for Test Points remote monitoring unit was designed to be the simplest to install and use in the market, yet it gives you access to more data about your cathodic protection system than you thought possible.

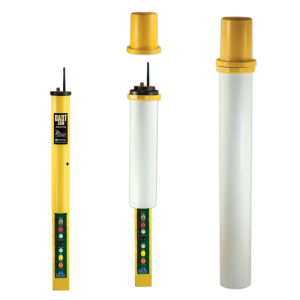

You can install the DART RMU within your existing test stations in 3 easy steps:

  1. Connect the wires
  2. Activate the system
  3. Check the readings

It’s that simple!

Not only are DART for Test Points capable of functioning as stand-alone data loggers for your test stations, they can also give you all of the readings you need for monitoring:

  • ON pipe-to-soil potential readings
  • OFF-potential readings
  • 100 millivolt shifts graphically expressed in our BORIN Data Center
  • Current density
  • AC-mitigation efforts
  • Native potential
  • Monitoring critical bonds
  • Depolarization plots
  • Check for dynamic stray currents
  • Instant OFF-potential readings presented in graphical format for easy analysis

Your readings are transmitted from your DART for Test Points via GSM or Satellite utilizing our secure server to our proprietary BORIN Data Center and stored indefinitely. You can connect to our Data Center through our secure server from your smart phone, tablet, laptop or desktop.

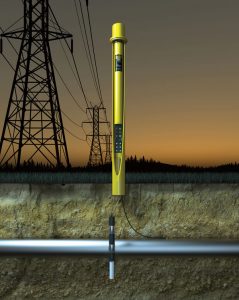

DART for Test Points are made to go anywhere corrosion can happen, from pipelines to tank farms to airports to offshore platforms. They are built to last with military-grade hardware — and are therefore robust enough to withstand the elements.

And, because you can choose between having either GSM and Satellite communications built in to your DART for Test Points remote monitoring unit, you don’t have to worry about your pipeline or project being too remote.

If it corrodes, we can monitor it.

  • FEATURES
  • MODELS
  • INSTRUCTIONS
  • DRAWINGS
  • ORDERING INFO
Size

Fits within our BULLET Marker cable and line markers in addition to any standard top-hat style 3″ test station

Material

Fade-proof, bullet-resistant ABS plastic outside, electronics inside

Communications

GSM: Communication with multiple carriers;
Satellite: Used where GSM doesn’t reach

Software

BORIN Data Center allows you to securely manage your entire system from one  on, using any web-enabled device

Applications
Monitors:
• Reference electrodes • DC drainage • AC-mitigation monitoring
• IR-Free reference electrodes • DC current • Pipe-to-soil potentials
• Casing-to-carrier shorts • DC current density • Instant-OFF potentials
• Resistance bonding points • Depolarization • And more
Expansion Capacity

Can monitor a simple 2 channel test station to thousands of channels

Capacity

2GB On‑site Capacity Data Logger:

Depending on your settings, it can store several years of data on‑site. The BORIN Data Center has unlimited storage capacity of your data upon secure transmission.

Number of Channels

8 channels

Communication Systems Available
• GSM • SCADA
• Satellite • MODBUS
• Radio • Microwave
• Fiber-optic • And more
Operating Temperature

-40o Celsius to +85o Celsius (-40o Fahrenheit to +185o Fahrenheit)

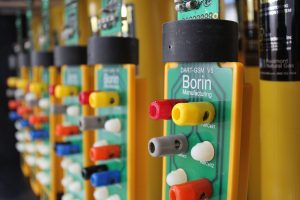

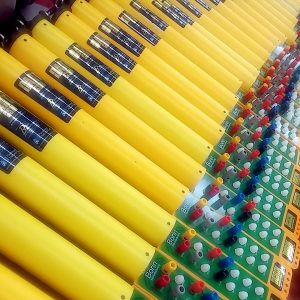

DART for Test Points (GSM)

DART for Test Points (GSM)

DPM-TS-RMU-GSM-V6

Cellular GSM communication (multiple carriers to ensure the widest coverage possible)

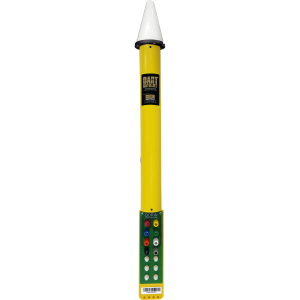

DART for Test Points (Satellite)

DPM-TS-RMU-V6-SAT

For places that GSM/cellular communication doesn’t reach

BORIN DART for Test Points Remote Monitoring Unit (GSM)

SKU DPM-TS-RMU-GSM-V6
Dimensions of product 26″ x 3″ x 3″
Dimensions of box 38.5″ x 5.5″ x 4.5″
Boxes per carton 12 each
Weight of carton 55 lbs (25 kg)
Dimensions of carton 39″ x 18″ x 17″
Minimum order 1 carton/case



DART for Test Points Remote Monitoring Unit (Satellite)

SKU DPM-TS-RMU-V6-SAT
Dimensions of product 26″ x 3″ x 3″
Dimensions of box 38.5″ x 5.5″ x 4.5″
Boxes per carton 12 each
Weight of carton 55 lbs (25 kg)
Dimensions of carton 39″ x 18″ x 17″
Minimum order 1 case
