STELTH 1

BORIN® STELTH® 1 Solid-State Reference Electrodes for Water, Buried Saturated-Soil or Submerged Applications

  • Palladium
  • Copper
  • Silver
  • Zinc

PALLADIUM: Until now, hydrocarbons proved deadly to all available reference electrode chemistries, including industry staples copper, silver, and zinc.
The applications for the new STELTH HCP are limitless.

Problem zones which have stunted use of traditional chemistries is another place the STELTH HCP will succeed – such as areas that have too many parts per million of chlorides for silver reference electrodes.

READ MORE: Introducing STELTH HCP™: New Palladium-based Reference Electrodes are Hydrocarbon-Proof (HCP™ )

COPPER: STELTH 1 Lorem ipsum dolor sit amet, consectetur adipisicing elit. Amet consequuntur cumque delectus, deleniti deserunt dolorum eligendi fugiat nam quaerat quis ratione repudiandae rerum veniam!

SILVER: STELTH 1Amet consequuntur cumque delectus, deleniti deserunt dolorum eligendi fugiat nam quaerat quis ratione repudiandae rerum veniam! Aspernatur dignissimos doloremque magnam nam quod!

ZINC: STELTH 1 Amet consequuntur cumque delectus, deleniti deserunt dolorum eligendi fugiat nam quaerat quis ratione repudiandae rerum veniam! Aspernatur dignissimos doloremque magnam nam quod!

BORIN‘s premiere offering to the reference electrode market is the STELTH 1 solid-state reference electrode; many decades later, it’s still your ideal choice for use in water, buried saturated-soil or submerged conditions.

The STELTH 1’s small rounded ceramic tip is designed to make complete contact with the environment when there is high water content, a necessity we’ve found after 39 years of research.

Just a few reasons BORIN STELTH solid-state reference electrodes are unique:

BORIN stands behind every STELTH reference electrode you buy:

  • FEATURES
  • MODELS
  • INSTRUCTIONS
  • SPECIFICATIONS
  • DRAWINGS
  • ORDERING INFO
Uses

Water and Buried Saturated-Soil or Submerged Applications

Size

1.215″ (31 mm) width x 8.25″ (209.5 mm) length

Standard Lead Wire

20′ (6.1 m) of #14 (2.5 mm2) 3 tray cable RHH-RHW wire (any length of wire available)

Material

High-impact ABS, ceramic with Moisture Retention Membrane (MRM™)

Shelf Life

Infinite shelf life, infinite stability

Color Code

Pd-PdCl2 (orange), Cu-CuSO4 (yellow), Ag-AgCl (blue), Zn-ZnSO4 (red)

Certified Potential Range
pH Range

4–9 pH

Working Temperature Range

32° F to +176° F (0° C to 80° C)

Material Temperature Range

-60° F to +185° F (-51° C to 85° C)

STELTH MODELS CHART

+

STELTH Models Chart

STELTH® 1 –  Pd-PdCl2

Model SRE-040-HCP
Hydrocarbon-Proof Palladium-Palladium Chloride

For water and buried saturated-soil service in any chloride level environment.

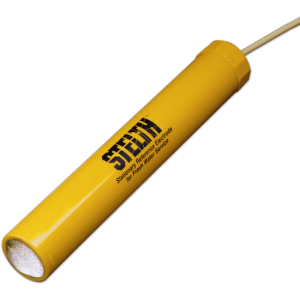

STELTH® 1 – Cu-CuSO4

Model SRE-002-CFY
Copper-Copper Sulfate

For water and buried saturated-soil service in any chloride level environment.

STELTH® 1 – Ag-AgCl

Model SRE-004-SFB
Silver-Silver Chloride

For water and buried saturated-soil service in any chloride level environment.
(can tolerate chloride plus bromide levels up to 1,000 ppm)

STELTH® 1 – Zn-ZnSO4

Model SRE-006-ZFR
Zinc-Zinc Sulfate

For water and buried saturated-soil service in any chloride level environment.

BORIN STELTH® 1 Solid-State Reference Electrode for Water, Buried Saturated-Soil, or Submerged Applications

Dimensions of product   1.215″ (31 mm) width x 8.25″
(209.5 mm) length.
BORIN Manufacturing
Standard Lead Wire 20′ (15 m) of #14 (2.5 mm2) RHH-RHW wire (any length of wire available). Address 5741 Buckingham Pkwy. Unit B
Culver City, CA 90230
Weight of STELTH 1
(no wire)
0.55 lbs. Phone (310)-822-1000
Weight of wire 10′ wire = 0.20 lbs. Email borin@borin.com
Weight of product
in case
STELTH 1 + 20′ of wire x 12 =
21 lbs. per case
STELTH 1 + 50′ of wire x 12 =
28.3 lbs. per case
Standard shipping time 24 hours (or less) from order placement
Dimensions of case of 12 17.5″ x 14.5″ x 13.5″ Boxes per case 12 each
Minimum order 1 case of 12
