BORIN STELTH 4 – Fat Cat Solid-State Portable Reference Electrode

Palladium
Copper
Silver
Zinc

PALLADIUM: Until now, hydrocarbons proved deadly to all available reference electrode chemistries, including industry staples copper, silver, and zinc.
The applications for the new STELTH HCP are limitless.

Problem zones which have stunted use of traditional chemistries is another place the STELTH HCP will succeed – such as areas that have too many parts per million of chlorides for silver reference electrodes.

COPPER: For chloride free environments.

SILVER: For environments with chloride.

ZINC: For chloride free environments.

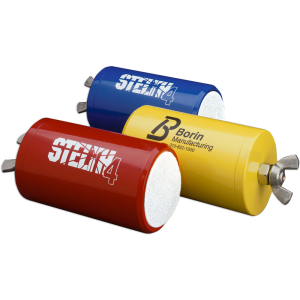

As with the slimmer STELTH 3 portable, the STELTH 4 Fat Cat is built with a wing nut instead of a wire, making it ideal for use above ground or with Miller Electrode Extensions.

The STELTH 4 Fat Cat also has a convenient flat ceramic plug shape so that you can stand it up on its end for easy readings.

Just a few reasons BORIN STELTH solid-state reference electrodes are unique:

Never need recharging or recalibrating
Impregnated with membrane that keeps electrolytes from drying out or getting contaminated
Trap hydrogen sulfide or excess chloride ions before they cause damage
Let you know when you have dangerous levels of AC to deal with
Can thrive in ALL environments, even those chemically detrimental to other reference electrodes
Remain accurate for their lifetime
Won’t die every winter

BORIN stands behind every STELTH reference electrode you buy:

We test EVERY SINGLE reference electrode we make
You can track/trace any STELTH
Every STELTH is calibrated for the life of the cell
Our STELTH reference electrodes will work for years and remain stable after you retire

FEATURES
MODELS
ORDERING INFO

Uses

Portable – Fat Cat; Stand-alone applications; surface or underground use

Size

2.25″ (57 mm) width x 4.5″ (114 mm) length high-impact resistant plastic electrode case

Standard Lead Wire

n/a

Service Life

Minimum 10-year service life

Shelf Life

Infinite shelf life, infinite stability

Material

ABS electrode-case housing; ceramic tip with Moisture Retention Membrane (MRM™)

Certified Potential Range

±5 millivolts vs. standard

pH Range

4–9 pH

Working Temperature Range

32° F to +176° F (0° C to 80° C)

Material Temperature Range

-60° F to +185° F (-51° C to 85° C)

STELTH Reference Electrode Models Chart

STELTH 4 – Hydrocarbon-Proof (Pd-PdCl₂)

Model SRE-043-HCP

Portable with wide sensing area for soil or concrete surfaces in any chloride environment.

STELTH 4 – Copper-Copper Sulfate (Cu-CuSO₄)

Model SRE-013-CPY

Portable with wide sensing area for soil or concrete surfaces in low chloride environments (can tolerate chloride plus bromide levels up to 1,000 ppm).

STELTH 4 – Silver-Silver Chloride (Ag-AgCl)

Model SRE-014-SPB

Portable with wide sensing area for soil or concrete surfaces in seawater/chloride environments (with chloride plus bromide levels in excess of 1,000 ppm but less than 19,000 ppm).

STELTH 4 – Zinc-Zinc Sulfate (Zn-ZnSO₄)

Model SRE-015-ZPR
